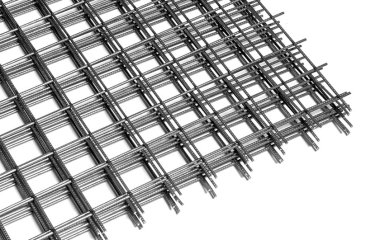

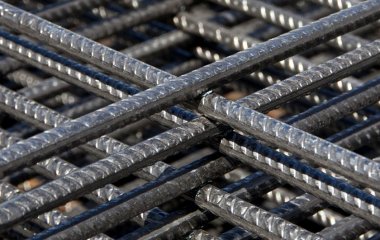

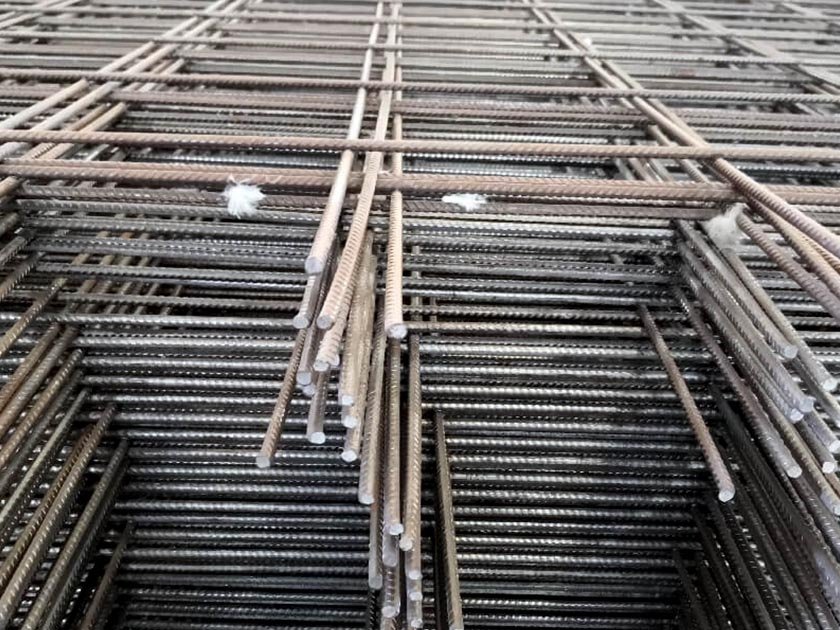

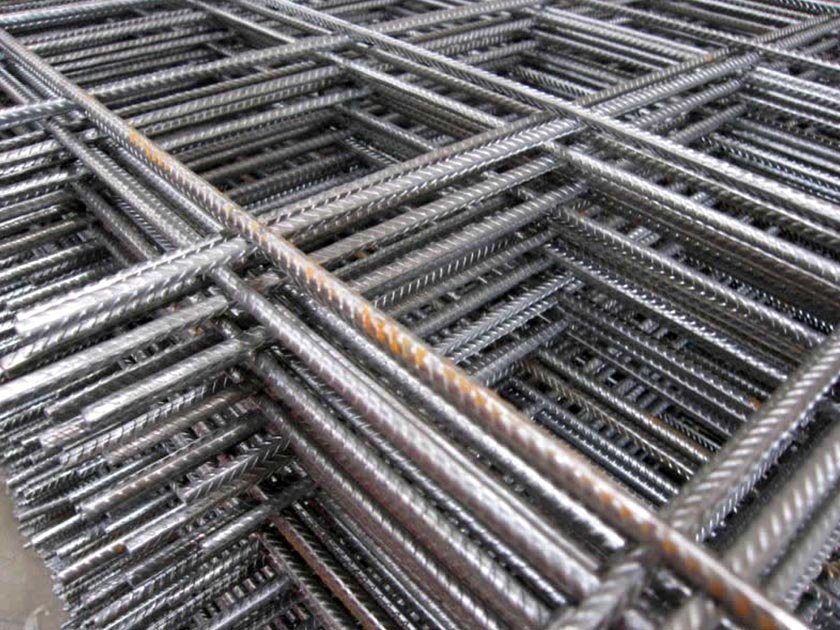

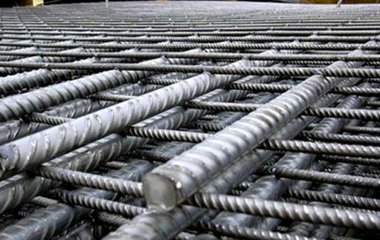

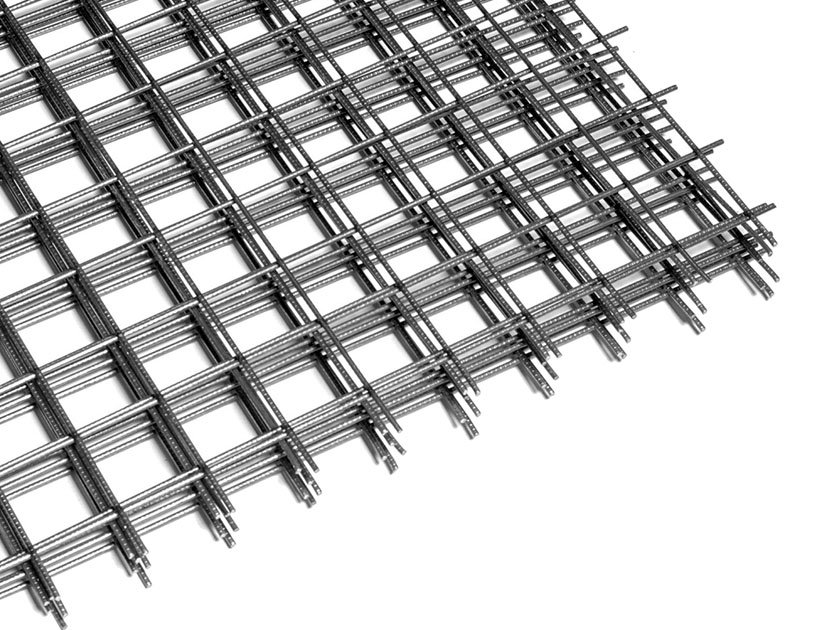

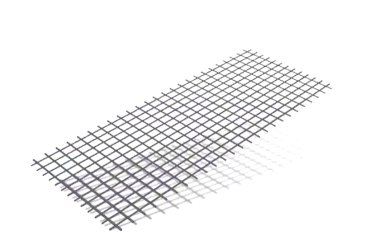

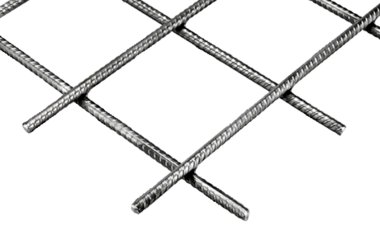

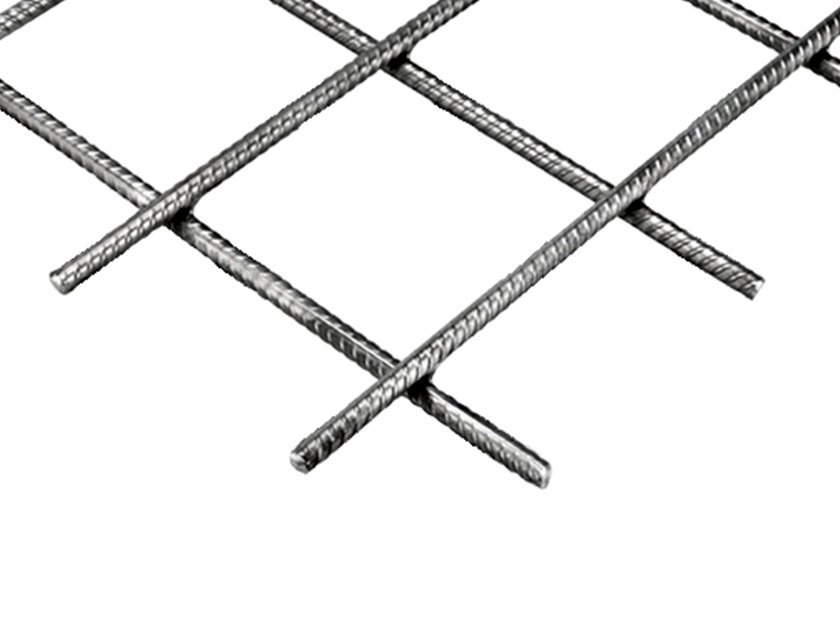

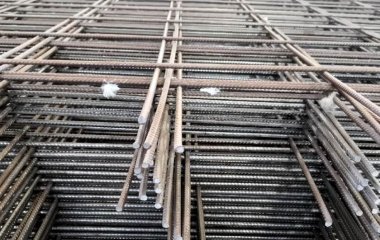

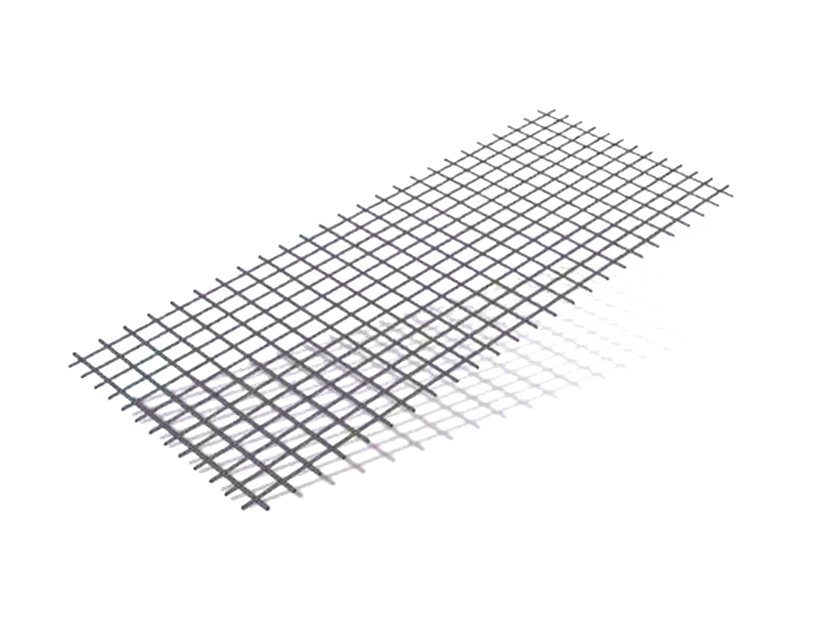

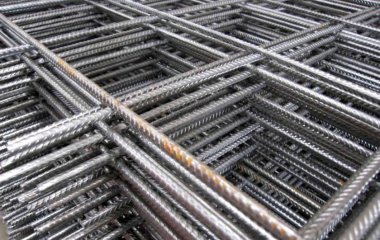

Welded Reinforcing Mesh, also known as welded wire mesh, rebar mesh, or steel mesh reinforcement, is a factory-fabricated mesh composed of longitudinal and transverse steel bars welded at their intersections. Used widely in concrete slabs, walls, pavements, tunnels, and bridges, it enhances structural integrity while reducing on-site labor. Yoshine’s mesh is made from cold-drawn or hot-rolled steel wire or bar, conforming to GB/T 1499.3, ASTM A1064, and BS 4483. Standard and custom sizes are available for various structural and industrial reinforcement needs.
温馨提示：点击可查看Excel表格内容
Wire Diameter (mm) | Mesh Size (mm) | Panel Size (m) | Application |
4–12 | 100x100 | 2.0x5.0 / 2.4x6.0 | Slabs, floors |
5–10 | 150x150 | 2.0x6.0 / 2.4x6.0 | Walls, basements |
6–12 | 200x200 | 2.0x6.0 / 2.4x6.0 | Pavements, roads |
5–8 | 100x200 | Customizable | Precast components |
4–8 | Variable | Customizable | Tunnels, shotcrete |
Yoshine provides full customization of welded mesh panels, including cutting, bending, trimming, and panel sizing. We can manufacture mesh to match your design drawings or reinforcement schedules, with labeled panel delivery for easy installation. Whether you need standard mesh sizes or complex configurations, our technical team offers detailed estimation and prefabrication services to meet your project specifications.

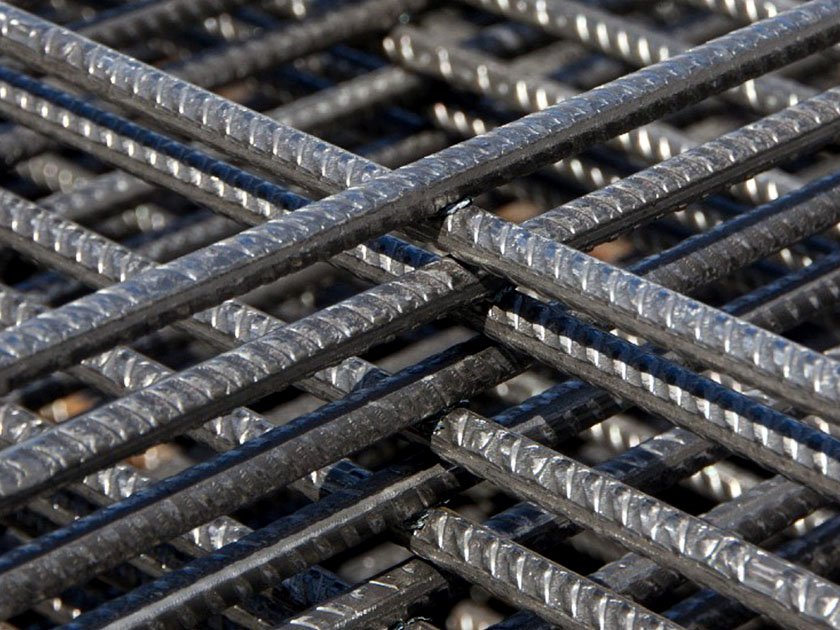

• Factory-welded intersections ensure strength and dimensional stability.
• Reduces installation time compared to tying loose bars on site.
• Customizable mesh spacing and panel sizes for various applications.
• Available in galvanized, black, or epoxy-coated finishes.
• Complies with GB/T 1499.3, ASTM A1064, BS 4483, and ISO 9001.
Yoshine manufactures welded mesh under ISO 9001-certified systems using precision welding machines and standardized quality control. All products undergo mechanical testing, dimensional checks, and surface treatment inspection. Our mesh complies with GB/T 1499.3, ASTM A1064 (USA), BS 4483 (UK), and is suitable for international construction markets with full traceability and documentation.
Fast Installation & Labor Saving
Welded mesh panels significantly reduce the need for manual tying, accelerating rebar placement and improving productivity on site.
High Strength & Reliability
Welded intersections provide superior load transfer and resistance to movement, ensuring consistent structural performance.
Cost Efficient & Low Waste
Precut panels minimize off-cuts and scrap, optimizing material usage and reducing jobsite clutter.
Flexible Design Options
Mesh can be tailored to fit irregular layouts or reinforcement zones, making it suitable for standard slabs or complex precast shapes.
Certified for Global Export
With certifications for ASTM, BS, and GB standards, Yoshine’s mesh is accepted on international projects and backed by full mill documentation.
Region / Standard | Equivalent Grade / Name |
China (GB/T 1499.3) | Welded Reinforcing Mesh |
USA (ASTM A1064) | Welded Wire Fabric (WWF) |
UK (BS 4483) | Steel Fabric for Reinforcement |
International Naming | Welded Mesh / Rebar Mesh / Steel Reinforcement Grid |
Welded Reinforcing Mesh, also known as welded wire mesh, rebar mesh, or steel mesh reinforcement, is a factory-fabricated mesh composed of longitudinal and transverse steel bars welded at their intersections. Used widely in concrete slabs, walls, pavements, tunnels, and bridges, it enhances structural integrity while reducing on-site labor. Yoshine’s mesh is made from cold-drawn or hot-rolled steel wire or bar, conforming to GB/T 1499.3, ASTM A1064, and BS 4483. Standard and custom sizes are available for various structural and industrial reinforcement needs.
