1. Introduction: Why Hoop Reinforcement is Critical in Modern Column Design

Hoop reinforcement — also referred to as closed ties or transverse reinforcement — consists of closed-loop steel bars placed around the longitudinal reinforcement in concrete columns. Unlike standard open stirrups, hoops are closed (or continuously wound) and feature seismic hooks at each end, designed to remain engaged even under severe cyclic loading.

For contractors and structural engineers working in high-seismic regions, one question dominates every project meeting:

“How do we satisfy ACI 318 seismic requirements without turning the jobsite into a reinforcement nightmare — and without blowing the budget?”

The tension is real. On one hand, seismic codes demand tight hoop spacing, 135-degree hooks, and dense confinement reinforcement in critical column regions. On the other hand, dense reinforcement creates congestion — steel so crowded that concrete can barely flow through, let alone consolidate properly. Field crews spend hours wrestling with individual bars, tying knots by hand, and praying the inspector doesn't flag their spacing.

This guide cuts through the complexity. We'll walk through what hoop reinforcement actually does, decode the ACI 318 spacing rules that engineers search for every day, compare hoops vs. spirals, and — most importantly — show you how to build faster, with less waste, without compromising a single pound of seismic performance.

2. The Core Functions of Hoop Reinforcement (Beyond Shear Strength)

Most engineers know hoops carry shear. The real magic of hoop reinforcement lies in three critical functions that keep columns standing when the ground moves.

2.1 Confinement Effect: Preventing Premature Concrete Crushing

When a major earthquake hits, the outer layer of concrete — the cover — spalls off almost immediately. What's left is the core concrete, confined by the hoops. Under this confinement, the core enters a triaxial compression state: the hoops exert lateral pressure that significantly increases both the compressive strength and the ductility (deformation capacity) of the concrete.

Without adequate confinement, the core crushes abruptly — a brittle failure with no warning. With properly designed hoops, the column can sustain large inelastic deformations while maintaining its load-carrying capacity. ACI CODE-318-25 specifies that confining reinforcement should be proportional to the applied axial load when the axial load exceeds meaning high axial loads demand more confinement.

2.2 Preventing Rebar Buckling

Under heavy axial loads combined with cyclic lateral displacement, longitudinal bars are under tremendous compressive stress. Without lateral support, these bars will buckle between tie points — a failure mode that rapidly degrades column strength.

Hoop reinforcement provides that lateral support. By closely spacing hoops along the column height, each longitudinal bar is restrained at frequent intervals, preventing the kind of bar buckling that leads to sudden collapse. ACI 318 requires all longitudinal bars to be laterally supported with seismic hooks — not just the corner bars.

2.3 Shear Resistance: Carrying Lateral Loads During Seismic Events

During an earthquake, columns must resist reversed cyclic shear — forces that change direction rapidly as the building sways back and forth. Hoop reinforcement acts as shear reinforcement, carrying these lateral loads and preventing diagonal shear cracks from propagating through the column.

In Special Moment Frames, transverse reinforcement consisting of hoops is required over the entire length of columns in critical regions. The shear demand in lower-story columns of high-rise buildings is particularly severe, making proper hoop detailing non-negotiable.

3. Structural Codes Demystified: ACI 318 Hoop Reinforcement Requirements

3.1 What Is a “Seismic Hoop” — And Why 90-Degree Ties Fail

Here's the hard truth: standard 90-degree ties will open up and lose their grip during an earthquake.

ACI 318 defines a seismic hook as a hook on a stirrup, tie, or crosstie having a bend of not less than 135 degrees — except for circular hoops, which are permitted with 90-degree bends. For rectangular and all other hoops, 135 degrees is the minimum.

Why? Under cyclic loading, a 90-degree hook can straighten out as the concrete around it crushes and spalls. Once the hook opens, the hoop is no longer closed — and without a closed hoop, confinement is lost. The 135-degree hook, with its longer development length, remains engaged even after the cover concrete has spalled off, keeping the core confined through the entire earthquake.

The hook extension must be at least the larger of 6d_b (six bar diameters) or 75 mm. For crossties, ACI 318 permits one end with a 135-degree seismic hook and the other end with a 90-degree standard hook, provided they engage peripheral longitudinal bars. However, research confirms that crossties with alternating 135-degree and 90-degree hooks can achieve satisfactory seismic performance — though at the expense of increased confining reinforcement.

3.2 Spacing Rules: The Formula Every Engineer Needs

This is the section engineers bookmark. In the critical regions of a column — the top and bottom portions adjacent to beam-column joints — hoop spacing must satisfy all three of the following maximum spacing limits (take the smallest).

For Grade 60 reinforcement, the spacing shall not exceed the least of these three values. The first hoop must be placed at a distance not more than 50 mm from the face of the supporting member. This ensures the critical region immediately adjacent to the joint is fully confined.

For lap splice regions in Special Moment Frames, confinement reinforcement in the form of hoops is required over the entire length of the lap splice. The hoop spacing at lap splices must not exceed the maximum allowed hoop spacing.

Pro Tip: When you can't achieve reasonable spacing with Grade 60 reinforcement, ACI 318 allows transverse reinforcement with yield strength up to 100 ksi — a practical solution for congestion.

3.3 Critical Regions: Where to Place Tighter Hoops

Confinement reinforcement is required over three types of regions along columns in Intermediate and Special Moment Frames:

1. Support regions (plastic hinge regions) : Probable flexural yielding regions at the top and bottom of each column story, adjacent to beam-column joints. These are where the largest inelastic deformations occur during an earthquake.

2. Non-reversing plastic hinge regions: Probable flexural yielding regions outside support regions.

3. Lap splice regions: Over the full length of lap splices in columns that are part of Special Moment Frames.

In practical terms, this means every column gets dense hoops at both ends — typically over a length  from the joint face. The middle portion of the column may have reduced transverse reinforcement, but the ends are where the action happens.

For columns supporting stiff members such as walls, hoops may be required over the full height of the column — not just the ends. Always check your specific structural system.

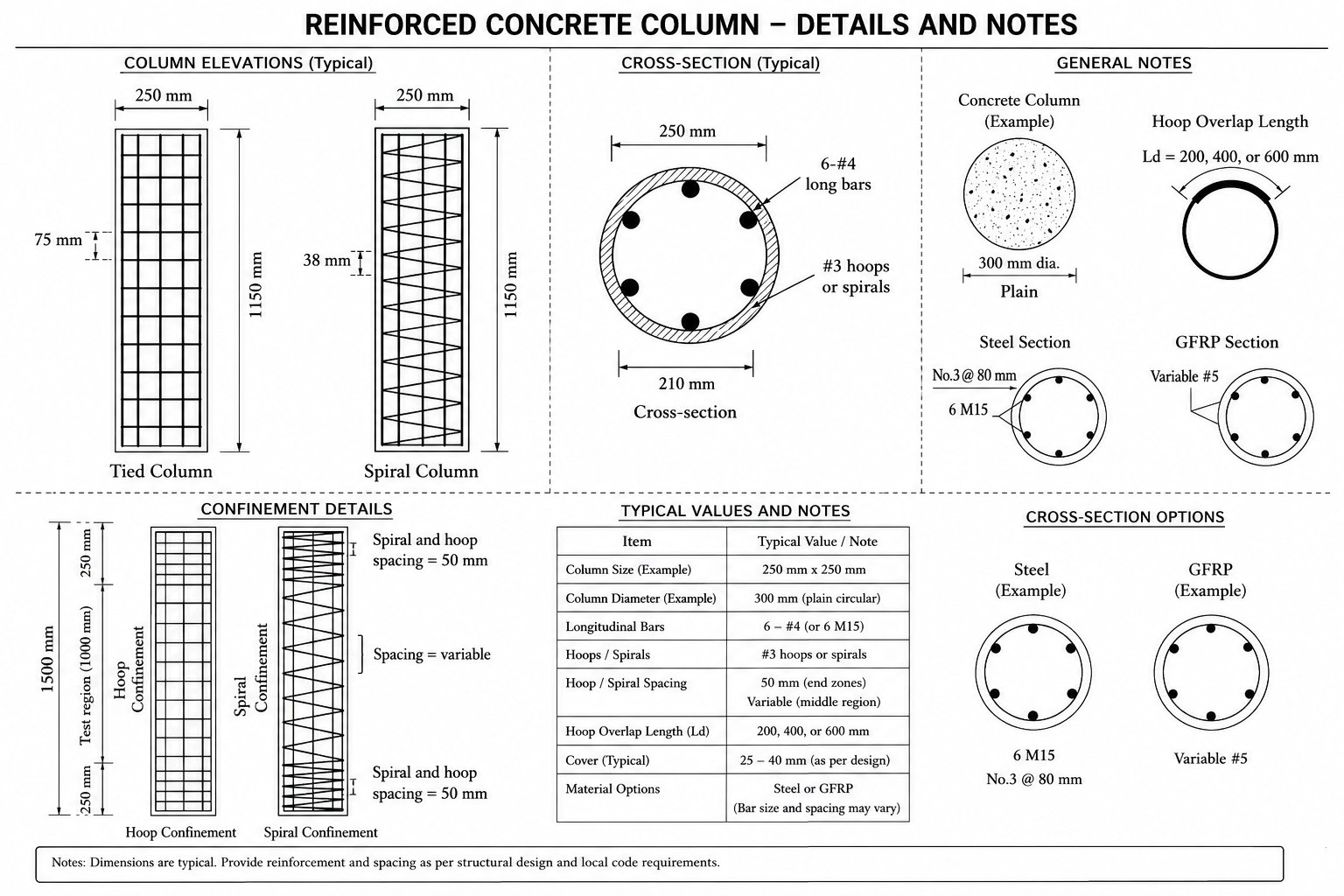

4. Hoop Reinforcement vs. Spiral Reinforcement: A Quick Technical Comparison

For circular columns, engineers have a choice: rectilinear hoops or spiral reinforcement. Each has its place. ：

Key insight: Spiral reinforcement offers better confined strength at relatively large spacing — about 11% increase in confined strength over circular hoops at 94 mm spacing. However, at tighter spacings, circular hoops can perform comparably.

The game-changer? Factory-prefabricated welded hoops. Preformed and welded in the shop, these closed hoops arrive on-site ready to drop over the cage — no field bending, no loose ends, no 135-degree hooks to wrestle with on scaffolding. They're changing the market precisely because they combine the confinement benefits of hoops with the installation speed of spirals.

5. Construction Challenges: How to Deal with Rebar Congestion & High Labor Costs

5.1 The On-Site Reality: Why Field Crews Hate Dense Hoops

Let's be honest: dense hoop reinforcement is a construction nightmare.

When ACI 318 demands hoops at 4 inches on center in the plastic hinge regions, you're looking at dozens of individual closed ties per column — each one requiring:

· Precise positioning around longitudinal bars

· 135-degree hook bending (which field crews hate)

· Wire tying at every intersection

· Constant checking for spacing tolerances

The result? Congestion so severe that concrete placement becomes a major challenge. The ACI requirements for adequate concrete confinement routinely result in congested joints that are very difficult to construct. Vibration is nearly impossible. Honeycombing is almost guaranteed.

And if the inspector finds spacing deviations? Rejection. Rework. Delays. Costs.

5.2 The Solution: Factory-Prefabricated Welded Hoops

Here's where smart contractors are winning.

Factory-prefabricated welded hoops — closed rectangular or circular hoops welded in a controlled shop environment — address every single pain point.：

The numbers speak for themselves: 30% reduction in construction time and significantly less material waste. Prefabricated columns with welded hoop plates are already being deployed in precast concrete construction. The hoop plate is welded to the column cage in the factory, and the upper and lower precast columns are connected by welding the hoop plates on-site.

But here's the critical question: Do prefabricated welded hoops meet ACI 318 seismic requirements?

The answer is yes — provided they are fabricated as closed hoops with the required geometry and hook details. ACI 318 defines hoops as "closed or continuously wound ties with a seismic hook at each end". A welded closed hoop, properly fabricated, satisfies this definition. In fact, welded construction eliminates the weak point that plagues field-bent hooks: inconsistent bend quality.

5.3 Practical Recommendations for Contractors

1. Specify prefabricated hoops in your bid. The upfront cost is slightly higher, but the labor savings more than compensate.

2. Work with a fabricator who understands ACI 318. Not all welded hoops are created equal. Ensure your fabricator knows the difference between standard ties and seismic hoops.

3. Design for constructability. If you're the engineer, consider specifying higher-strength transverse reinforcement ( up to 100 ksi) to allow wider spacing without sacrificing confinement.

4. Plan the cage assembly. Prefabricated hoops work best when the entire column cage is assembled on the ground and lifted into place — not when hoops are added one by one in the air.

Summary: Key Takeaways：
