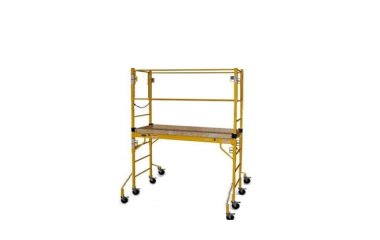

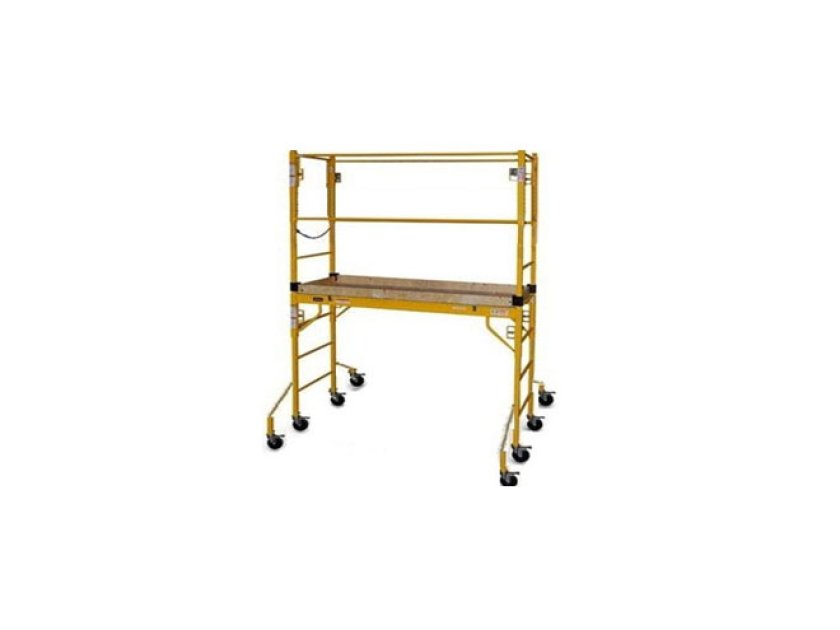

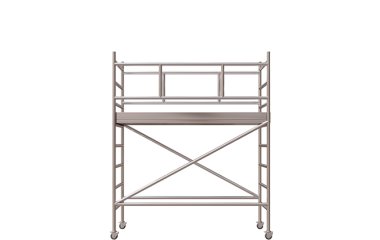

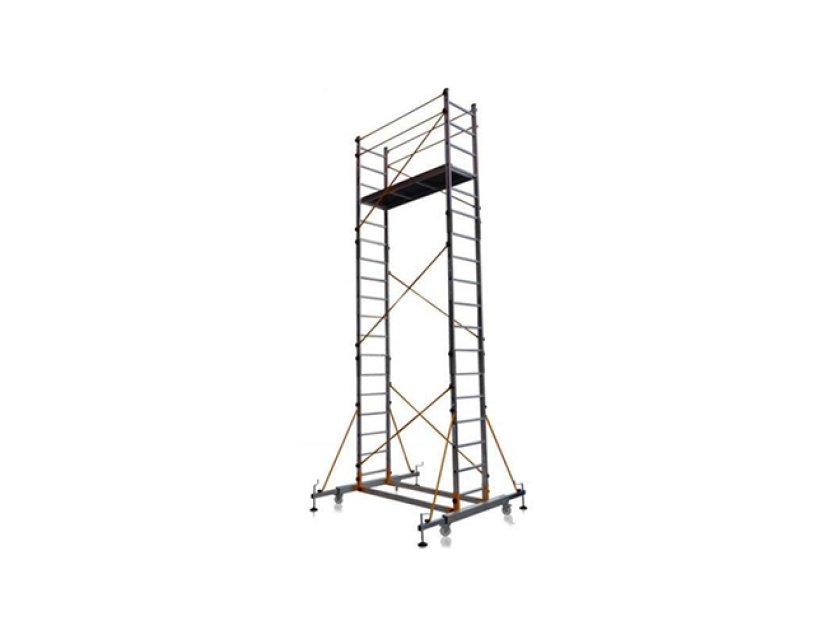

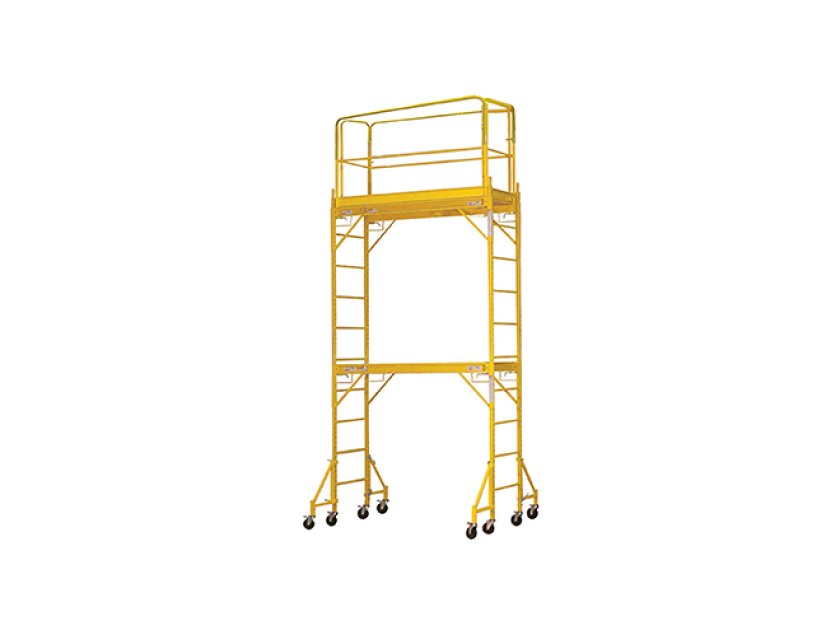

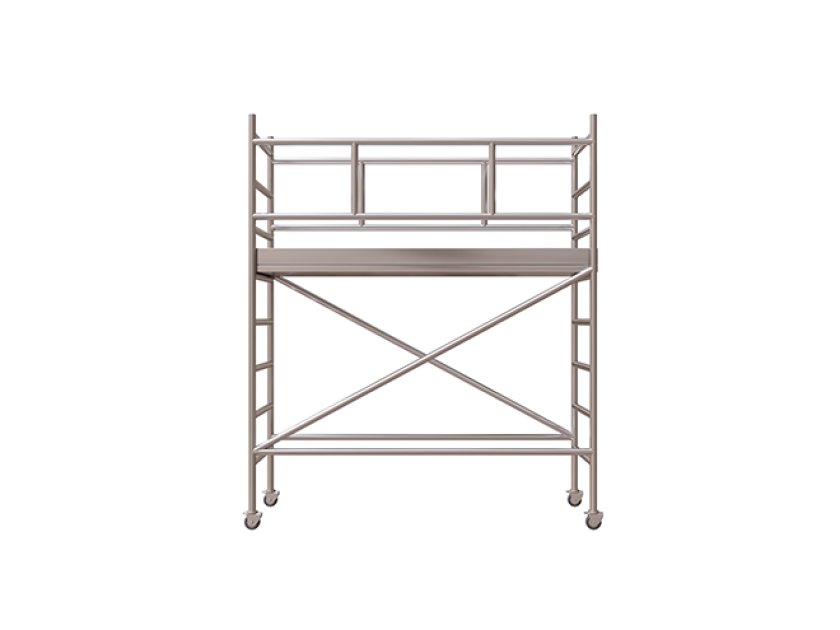

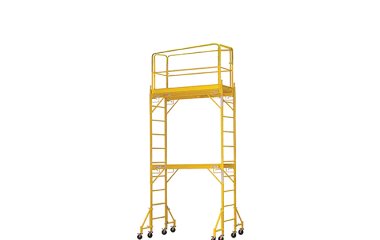

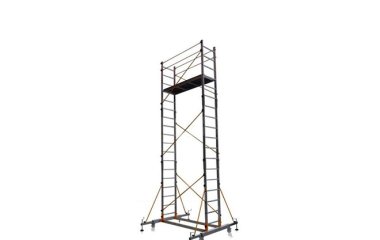

Rolling Scaffold Tower

Introduction:

YOSHINE’s Frame Scaffolding System is a proven, cost-effective solution widely used in both interior and exterior construction. With its modular welded frames and cross braces, it provides a safe and stable working platform for residential, commercial, and industrial projects. Components are factory-standardized for easy stacking and assembly. Designed for mobility, safety, and simplicity, the system is ideal for low-rise buildings, maintenance work, temporary stages, and infrastructure projects. Manufactured from Q235 or Q345 steel and treated with powder coating or hot-dip galvanization, it meets major global standards including EN 12810, EN 12811, BS 1139, and ISO 9001.

Inquiry Now Add To Cart

Product Details

YOSHINE specializes in customizing scaffolding solutions for construction sites. We provide scaffolding and installation instructions according to your requirement.

Product Components

Frame: Vertical sections forming the main structure, available in various heights and widths to accommodate different project needs.

Product Name	Meterial	Height (mm)	Width (mm)	Main Tube (mm)	Inner Tube (mm)	Weight (kg)	Load Capacity
Scaffold Frame	SCH20	1700mm	1219mm	42 x 2.0	25 x 1.5	11	75kN
Scaffold Frame	SCH40	1700mm	1219mm	42 x 1.5	25 x 1.2	14	75kN

Cross Braces: Diagonal components that connect frames, enhancing stability and rigidity. (Customizable size)

Base Plates/Adjustable Base Jacks: Placed at the bottom of frames to distribute loads evenly and ensure a level foundation.

Product Name	Size
Adjustable jack-base	D38 x 600 (Hollow Tube)
Adjustable jack-base	D38 x 600 (Solid Tube)

Steel Planks: Provide a durable and secure working platform.

Product Name	Meterial	Size	Length(mm)	Surface Treatment
Ringlock Scaffolding Planks	Q235	320X76X1.5mm	732mm	Hot-dip galvanized
			1088mm
			1400mm
			1572mm
			2072mm
			2572mm
			3072mm

Guardrails and Toeboards: Safety features that prevent falls and protect workers. (Customizable size)

Couplers and Connectors: Facilitate secure assembly of scaffolding components.

Product Features

Easy Assembly: Snap-on or flip locking pins make setup fast and tool-free.

Lightweight but Strong: Frames are easy to handle while providing excellent stability.

Adaptable Designs: Multiple frame styles suit various access and workspace layouts.

Smooth Mobility: Optional caster wheels enable quick repositioning on site.

Compact Transport: Fewer parts and flat stacking make logistics simple and efficient.

Advantages

Versatile Applications

Yoshine Frame Scaffolding is used for external facades, internal maintenance, bridge shoring, hull repair, and even spectator stands. Its adaptability makes it suitable for nearly any jobsite.

Fast Setup, Reduced Labor

The simplified frame + brace system allows workers to assemble scaffolding quickly and safely. Cross braces, base jacks, and planks with hooks lock into place without complex tools, saving time and labor.

Durable Materials, International Standards

Made from Q345 or Q235 steel, our frames offer long-lasting performance. With hot-dip galvanization and ISO 9001 certified production, they meet or exceed EN 12810, EN 12811, and BS 1139 standards. Each unit is also SGS-verified for safety and material reliability.

Easy to Move, Easy to Store

With optional caster wheels and lightweight modular units, the system can be moved easily for indoor or outdoor work. It stacks compactly for efficient storage and transport.

Profitable for Sale or Rental

Due to its wide applicability, low maintenance, and reusability, the frame scaffold has huge demand in the global market. Whether for personal use, fleet rentals, or long-term projects, it's a smart investment with strong ROI.
