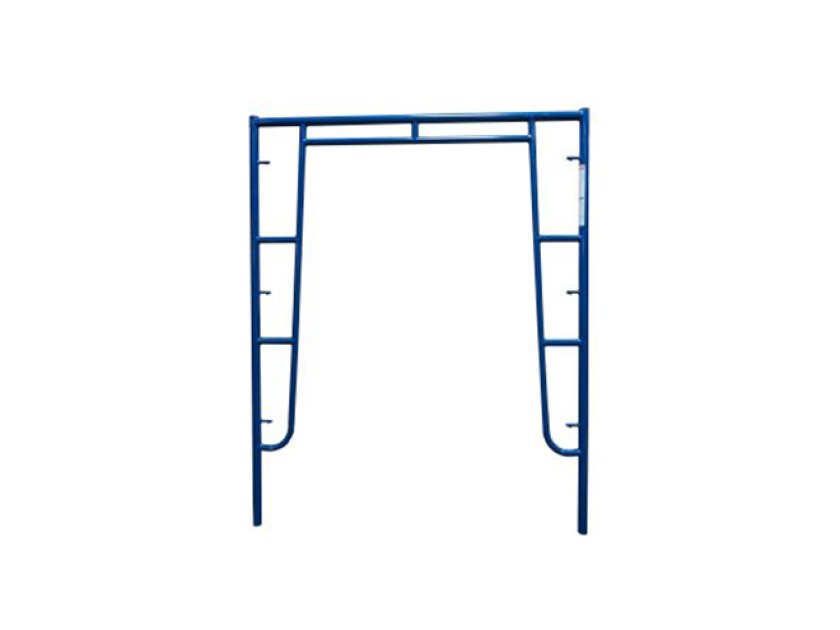

YOSHINE’s Walk Through Scaffolding Frame is engineered with a central walkway to allow seamless movement of workers, tools, and materials across elevated platforms. Ideal for projects requiring frequent repositioning or extended horizontal access—such as façade painting, ceiling installations, or event stage setups—this system combines Yoshine’s signature modularity with enhanced accessibility. It meets major global standards including EN 12810, EN 12811, BS 1139, and ISO 9001.

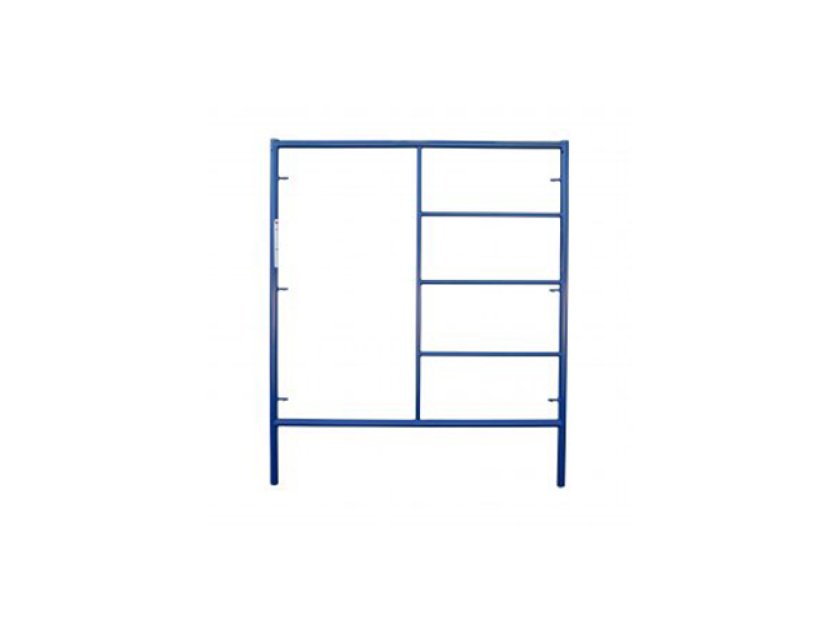

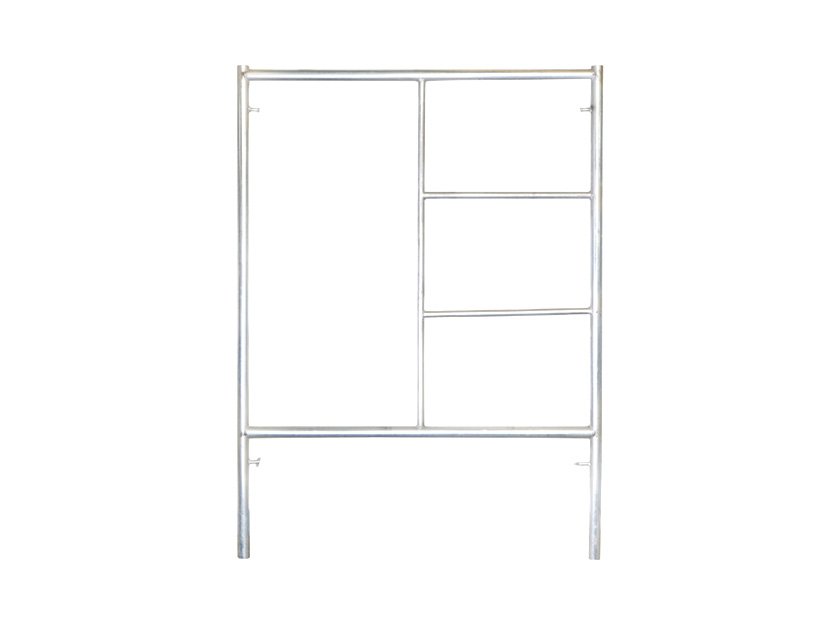

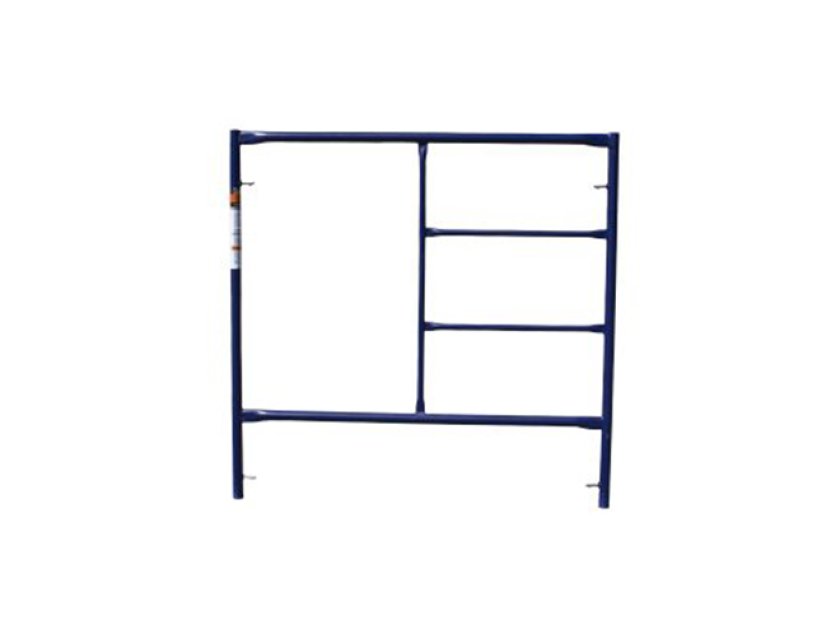

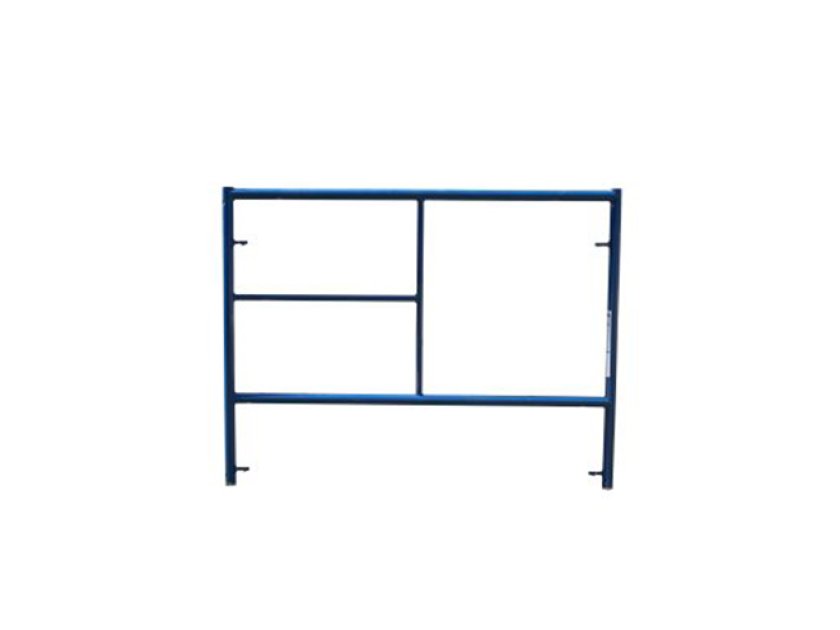

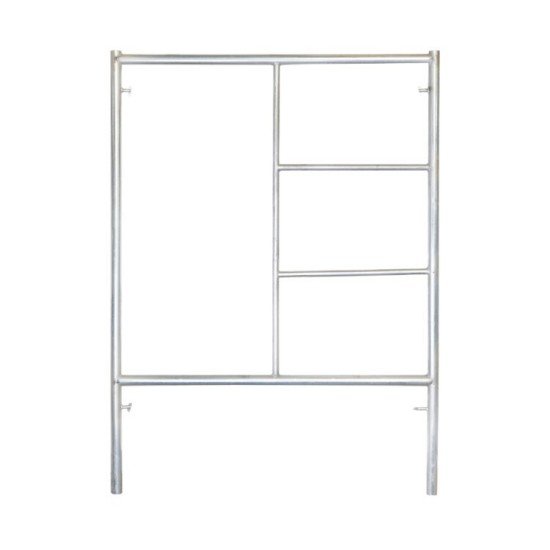

Frame: Vertical sections forming the main structure, available in various heights and widths to accommodate different project needs.
Product Name | Meterial | Height (mm) | Width (mm) | Main Tube (mm) | Inner Tube (mm) | Weight (kg) | Load Capacity |
Scaffold Frame | SCH20 | 1700mm | 1219mm | 42 x 2.0 | 25 x 1.5 | 11 | 75kN |
SCH40 | 1700mm | 1219mm | 42 x 1.5 | 25 x 1.2 | 14 | 75kN |

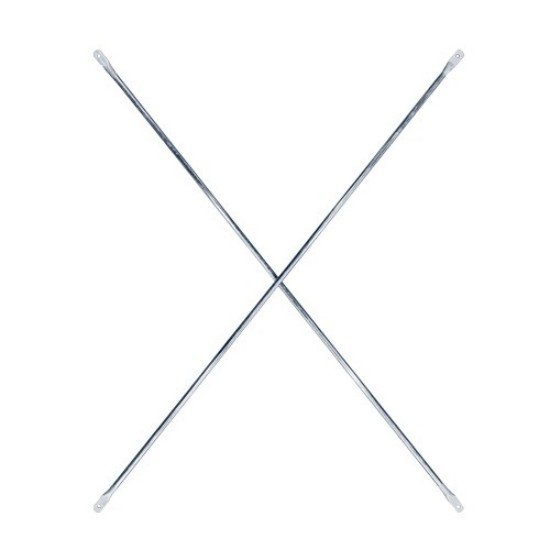

Cross Braces: Diagonal components that connect frames, enhancing stability and rigidity. (Customizable size)

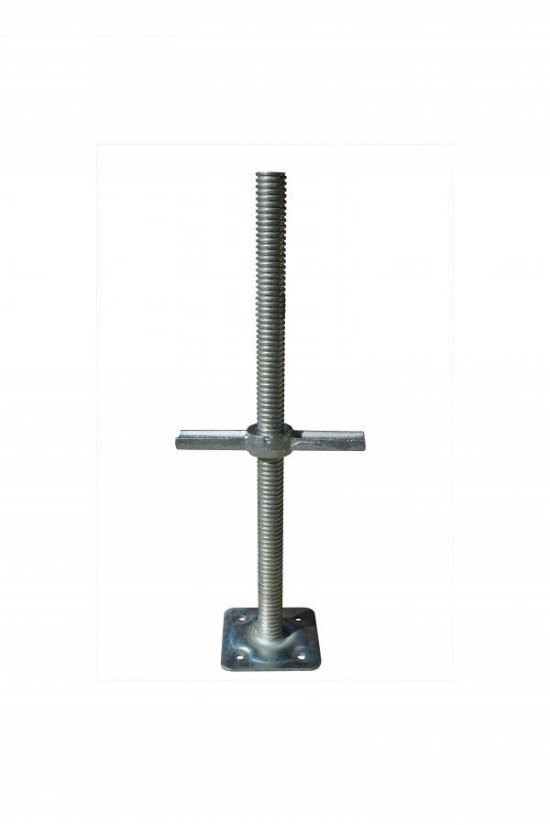

Base Plates/Adjustable Base Jacks: Placed at the bottom of frames to distribute loads evenly and ensure a level foundation.
Product Name | Size |
Adjustable jack-base | D38 x 600 (Hollow Tube) |
D38 x 600 (Solid Tube) |

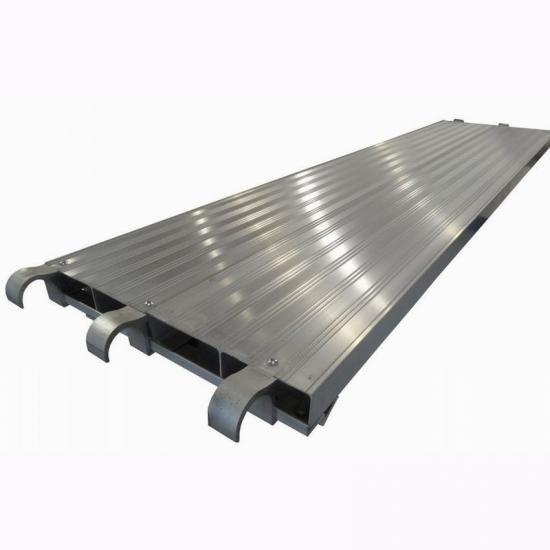

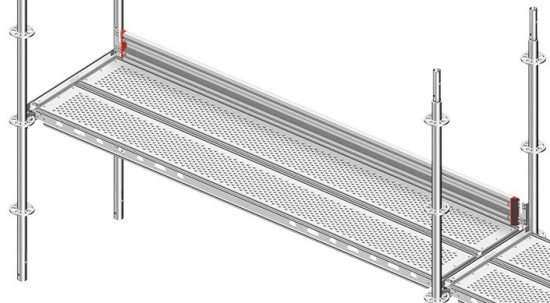

Steel Planks: Provide a durable and secure working platform.
Product Name | Meterial | Size | Length(mm) | Surface Treatment |
Ringlock Scaffolding Planks | Q235 | 320X76X1.5mm | 732mm | Hot-dip galvanized |
1088mm | ||||
1400mm | ||||
1572mm | ||||
2072mm | ||||
2572mm | ||||
3072mm |
Guardrails and Toeboards: Safety features that prevent falls and protect workers. (Customizable size)

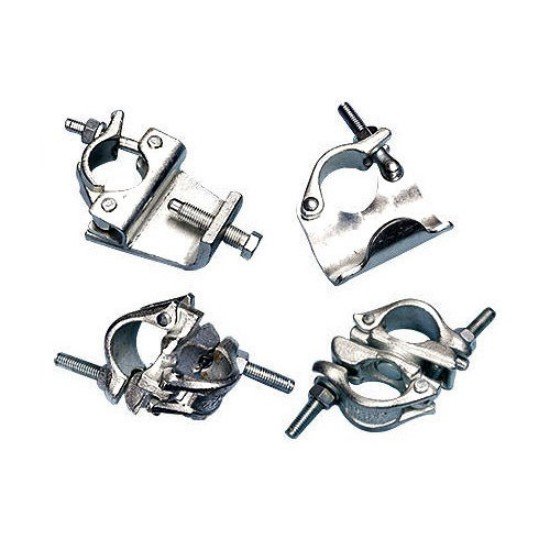

Couplers and Connectors: Facilitate secure assembly of scaffolding components.
Easy Assembly: Snap-on or flip locking pins make setup fast and tool-free.
Lightweight but Strong: Frames are easy to handle while providing excellent stability.
Adaptable Designs: Multiple frame styles suit various access and workspace layouts.
Smooth Mobility: Optional caster wheels enable quick repositioning on site.
Compact Transport: Fewer parts and flat stacking make logistics simple and efficient.
Faster Project Completion
The walk-through design reduces downtime caused by climbing over braces or dismantling sections for access. Workers focus on tasks, not navigating obstacles.
Labor and Cost Savings
Lightweight frames (20–30% lighter than conventional steel scaffolds) cut handling time, while reusable components minimize replacement costs.
Multi-Scenario Adaptability
Use it for:
High-traffic interior projects (e.g., airport terminal lighting, mall HVAC maintenance)
Exterior facade repairs with frequent material reloading
Temporary event stages requiring quick layout changes
Space-Smart Storage & Transport
Nesting frames and foldable braces reduce storage footprint by up to 60%, lowering logistics costs for rental companies or contractors with limited yard space.
Global Compliance, Local Reliability
SGS-verified materials and ISO-certified manufacturing guarantee compliance with regional safety regulations, whether in Europe, North America, or Asia.
YOSHINE’s Walk Through Scaffolding Frame is engineered with a central walkway to allow seamless movement of workers, tools, and materials across elevated platforms. Ideal for projects requiring frequent repositioning or extended horizontal access—such as façade painting, ceiling installations, or event stage setups—this system combines Yoshine’s signature modularity with enhanced accessibility. It meets major global standards including EN 12810, EN 12811, BS 1139, and ISO 9001.
A cost-effective solution ideal for low-rise buildings
Widely used in both interior and exterior construction
