Ringlock Shoring Systems

Introduction:

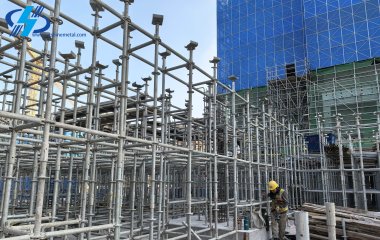

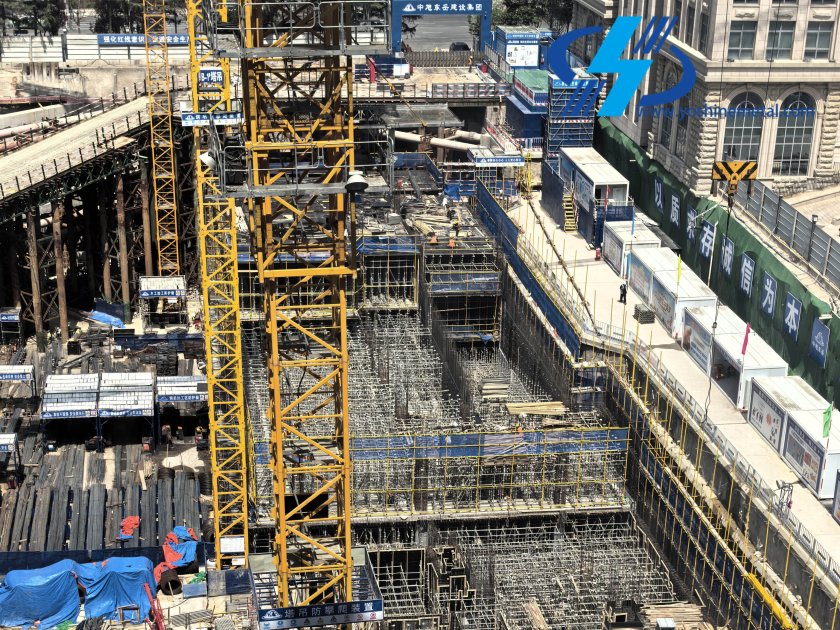

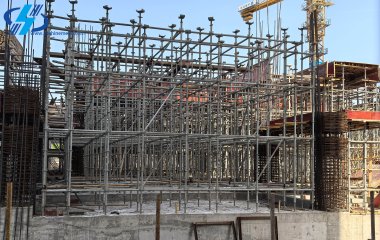

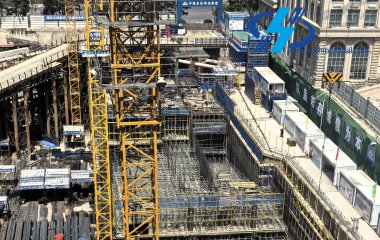

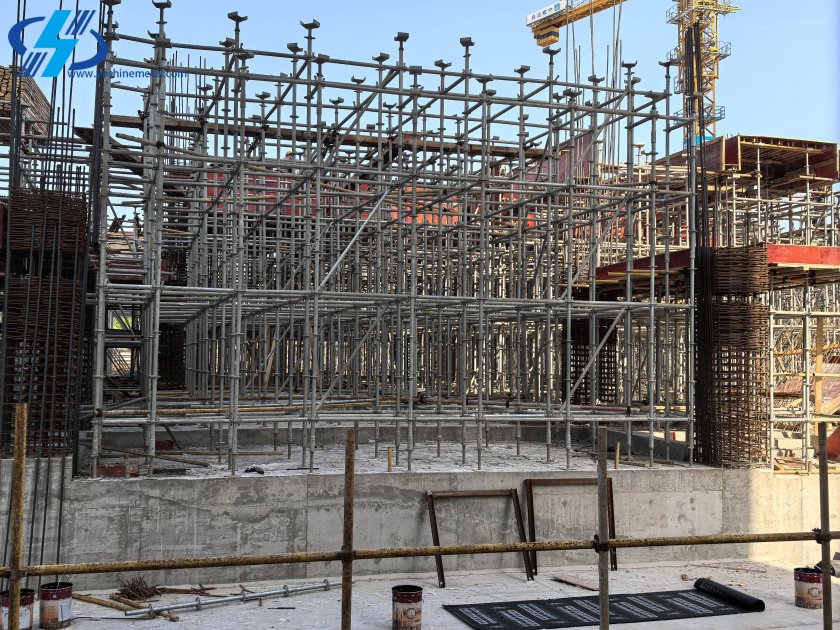

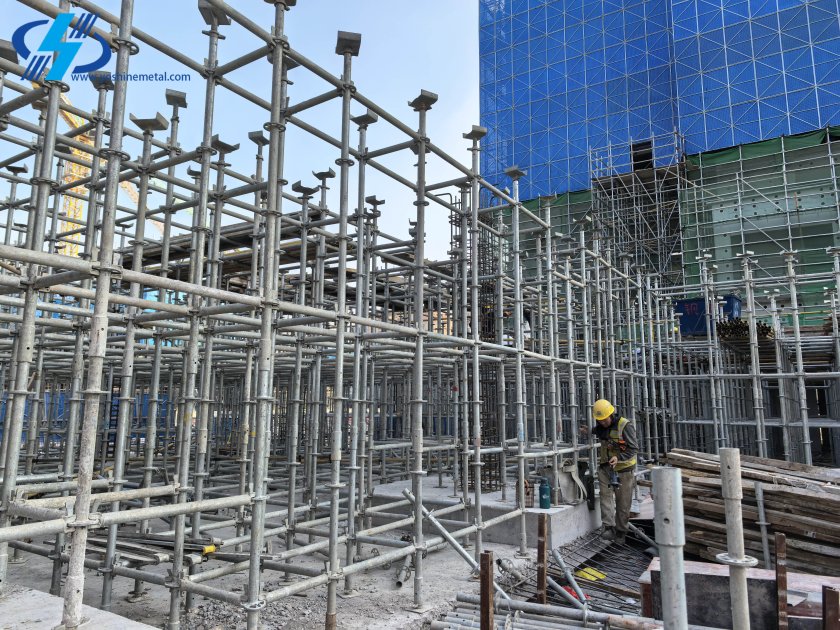

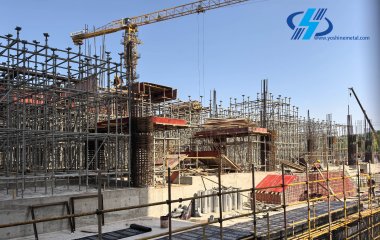

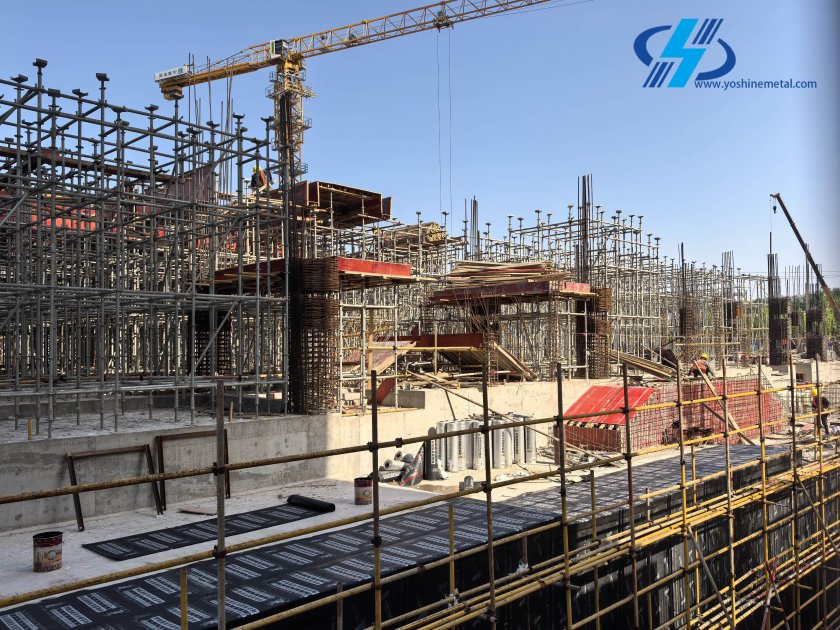

Engineered for maximum load-bearing performance, our Ringlock shoring system provides unyielding structural support for heavy civil engineering and infrastructure projects. Designed to translate your heavy-duty concrete shoring blueprints into high-precision technical reality, it minimizes site labor while ensuring absolute stability under immense pouring loads.

Inquiry Now Add To Cart

Product Details

High-Tensile Q345 Steel: Provides maximum bending, compression, and shear resistance for massive industrial and concrete

Rigid Rosette Node Connection: The 360° self-locking wedge mechanism eliminates structural deflection under high dynamic concrete pressures.

Heavy-Duty U-Head Compatibility: Seamlessly integrates with heavy-duty adjustable U-head jacks to securely hold aluminum or timber formwork systems. [Learn more about our Construction Formwork System].

International Compliance: Fully certified under EN 12810/12811 standards for high-clearance shoring solutions.

Industrial Hot-Dip Galvanization: 100% hot-dip galvanized coating protects all components against heavy friction, concrete slurry wear, and harsh structural environments.

System Components

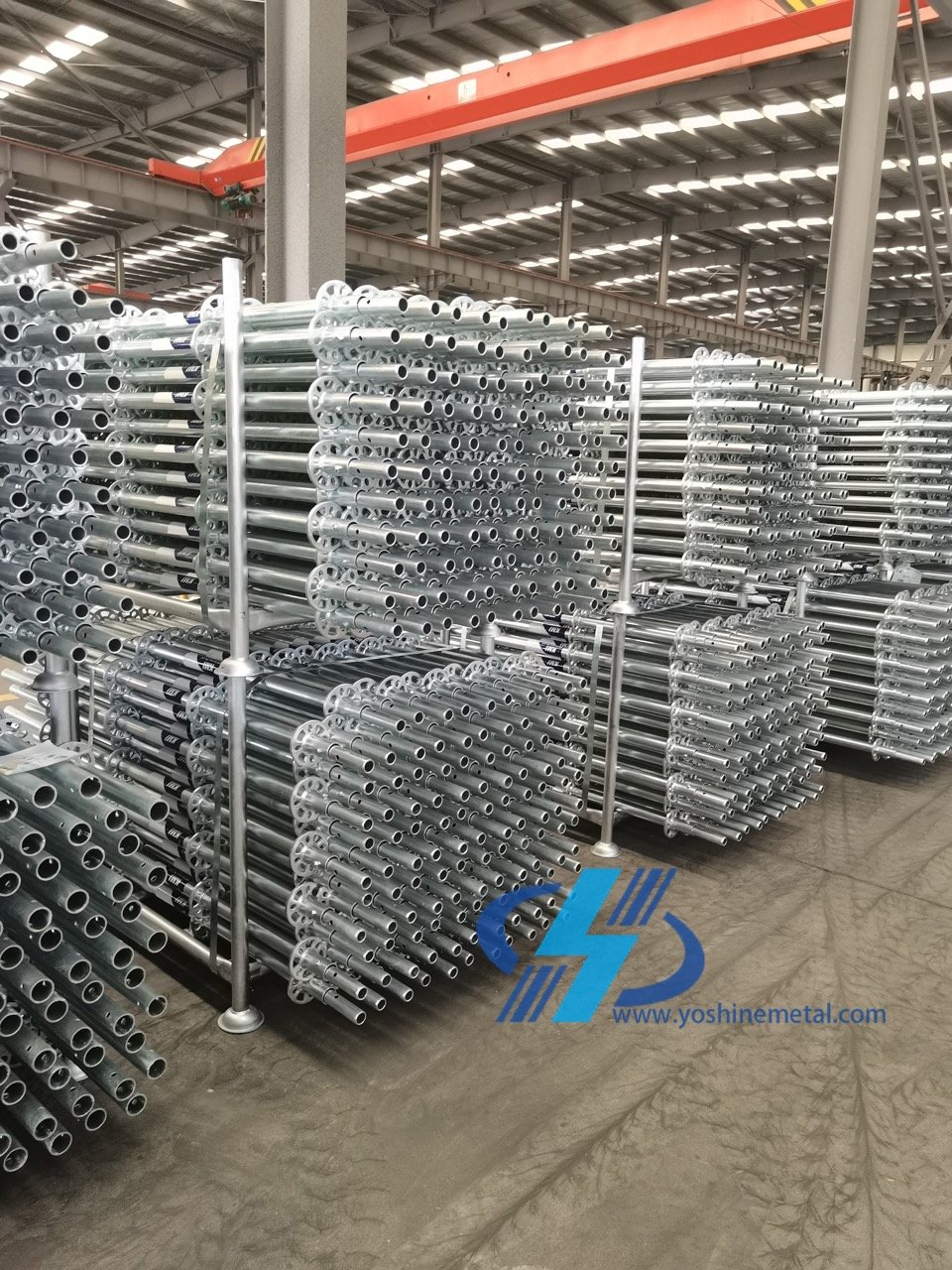

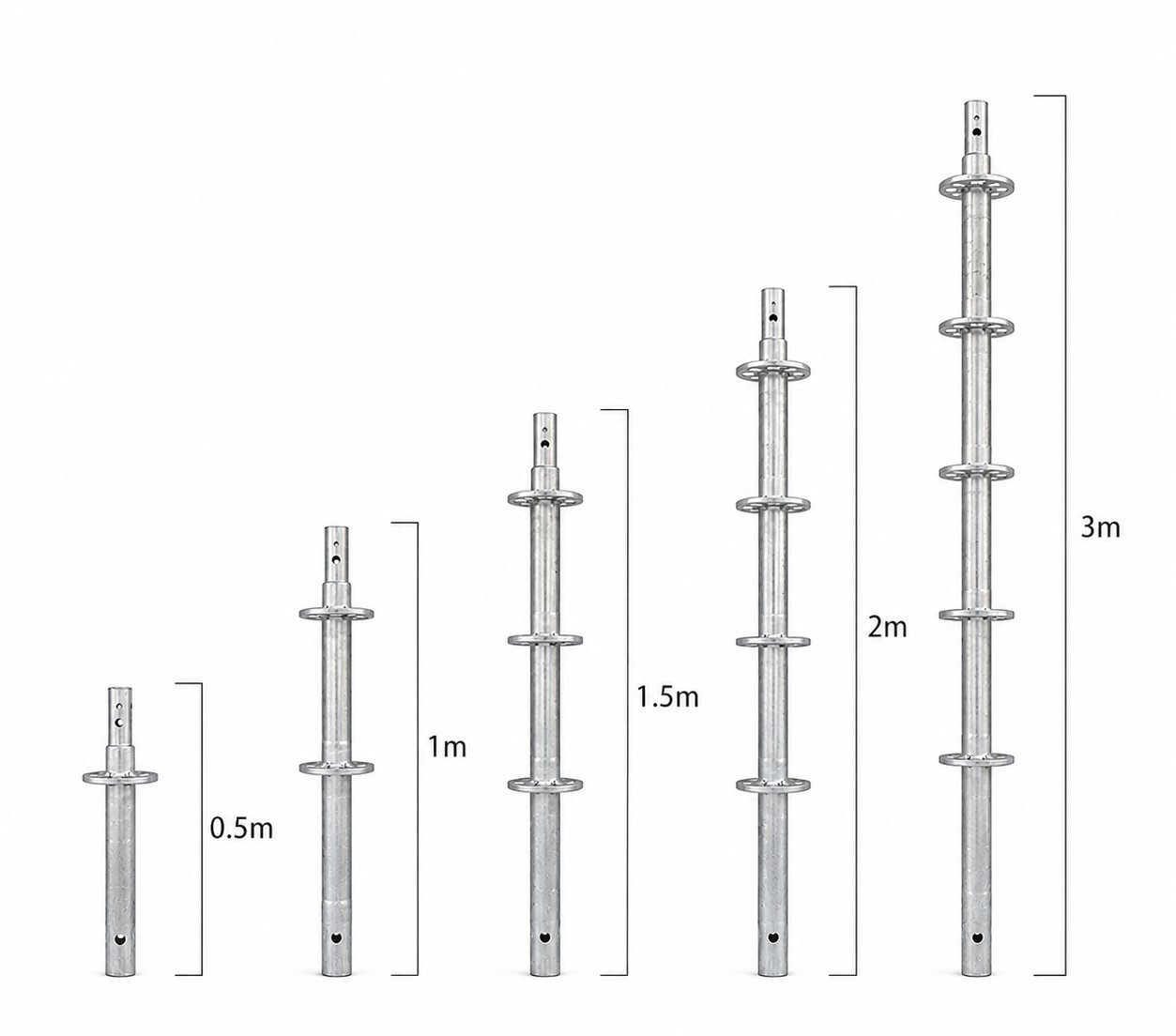

Standard Vertical	Heavy-duty load-bearing pole manufactured from high-tensile Q345 steel, featuring precision-welded rosets every 50cm for multi-directional shoring connections.

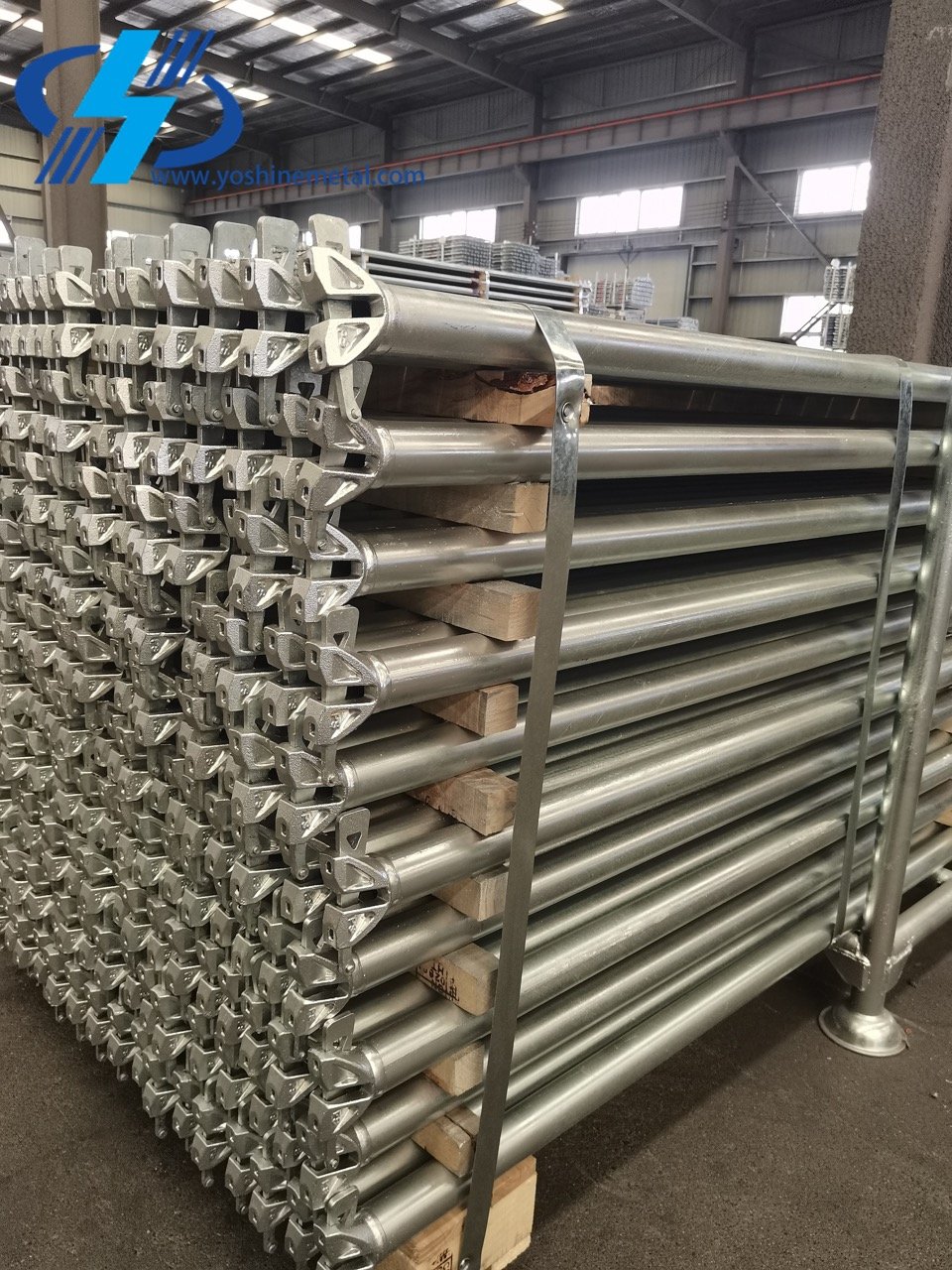

Ledger (Horizontal)	Connects verticals horizontally to lock the shoring grid, providing exceptional ledger-to-node rigidity under heavy concrete pouring loads.
Diagonal Brace	Reinforces the entire shoring matrix, ensuring 3D structural stability, zero deflection, and superior resistance to lateral and shear forces.

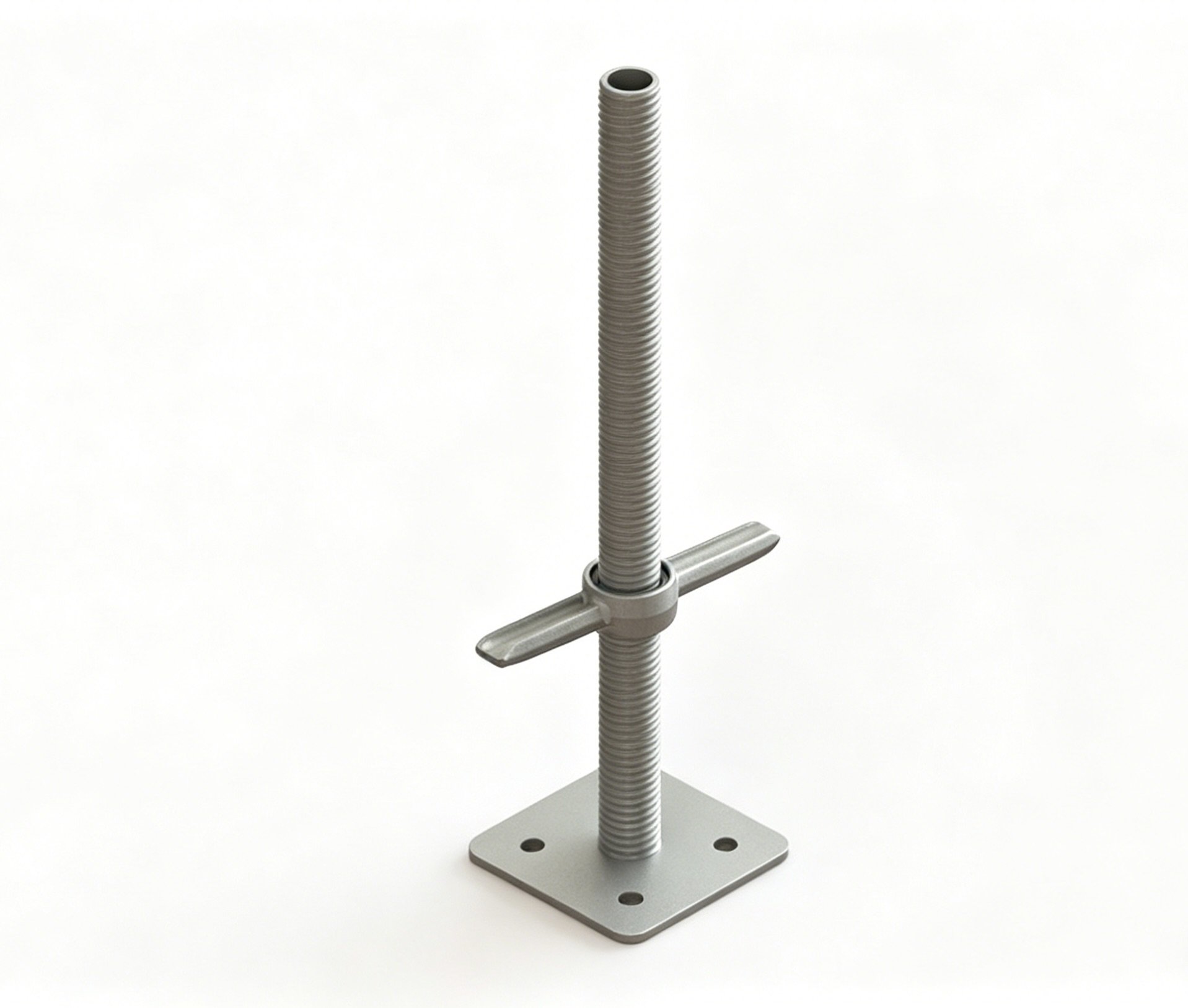

Base Jack	Heavy-duty adjustable foundation for leveling and strength
U-Head Jack	High-capacity adjustable top jack with a heavy-duty steel U-plate. Formed via carbon steel solid/thick-walled casting for extreme compressive strength, it securely aligns and supports timber H20 beams, steel scaffolding tubes, or aluminum formwork systems.
Truss Ledgers	Engineered bridging components to support longer horizontal spans; critical for high-load, wide-clearance, or heavy infrastructure shoring applications.
Shoring Accessories	Includes wedge pins, twin wedges, and specialized heavy-duty couplers required for customized and reinforced structural shoring tower setups.

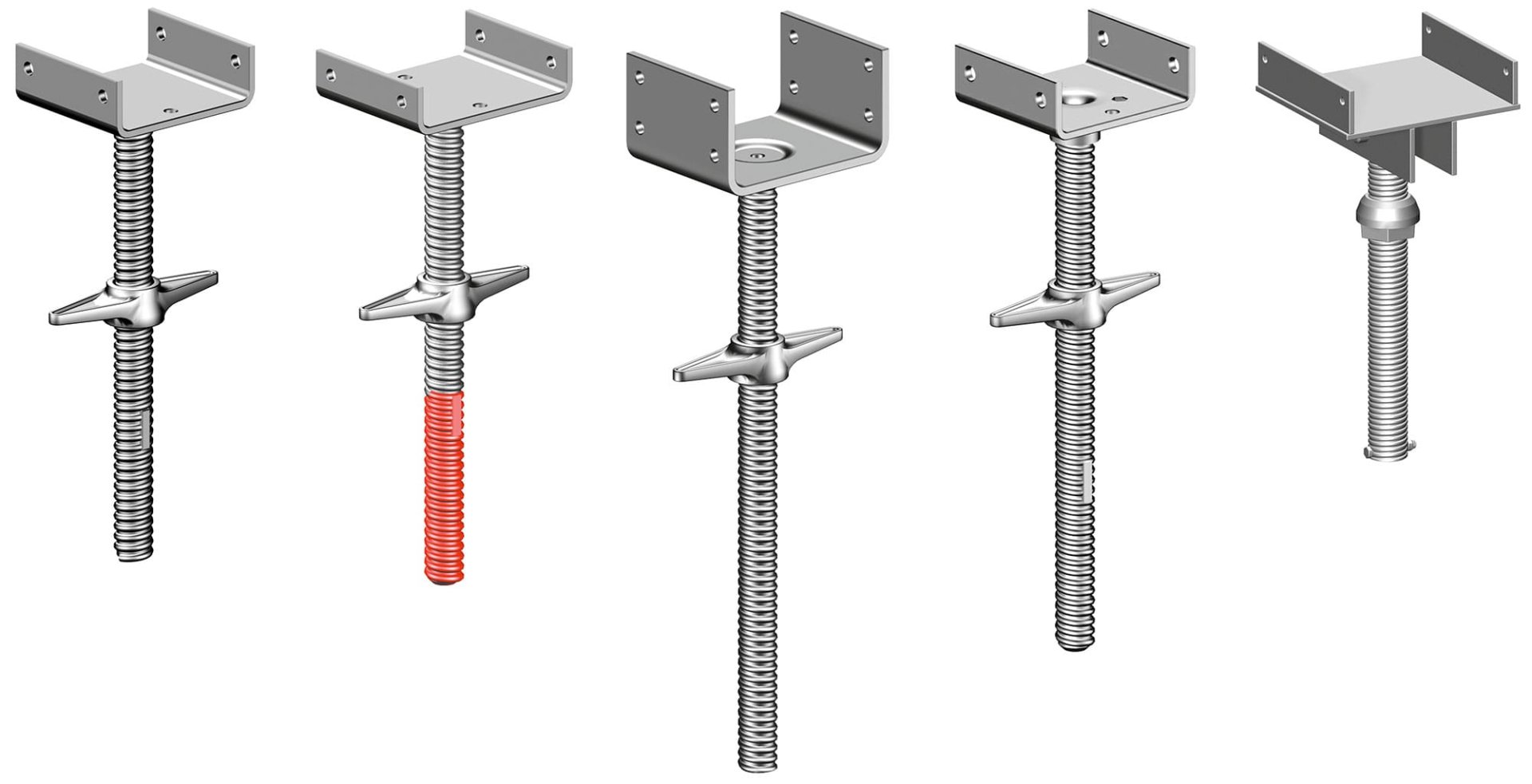

Engineered U-Head Jacks: The Critical Link for Formwork Support

Our adjustable U-Head Jacks are specifically engineered to bear the massive compressive weight of freshly poured concrete.

Premium Material Options: Available in heavy-duty solid screw stems or high-strength thick-walled hollow tubes to meet precise engineering load calculations.
Maximum Corrosion Protection: Fully hot-dip galvanized or electro-galvanized to resist heavy friction, concrete slurry wear, and harsh site elements.
Universal Compatibility: Specially sized U-plates ensure a snug, non-slip fit for standard timber H20 beams, aluminum joists, and steel framing components.
